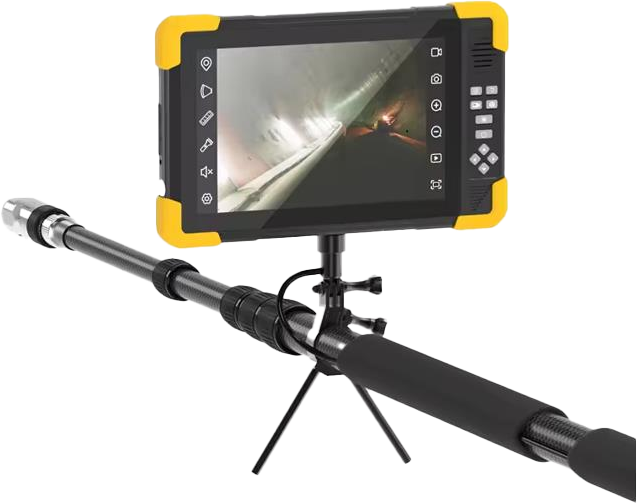

LC 500TC pole camera is a professional IP65 uncooled 256*192px multimode thermal camera, with 360° PTZ inspection capability.
The viewing angle is 135° and it is equipped with a light source of 8 LED’s. It has a 7″ 4k touch screen for control and recording, a telescopic pole camera of 5.0m (unfolded), 1.13m (folded).
The system has a 7-inch screen with recording option and complete working time of 6-8 hours between charges.
Specification
360 Rotated IP68 Waterproof Camera
Cmos SONY
pixel 500万
light source 4pcs LED vision distance 10m
Minimum illumination 0.001Lux/F1.2
Lens 3.6mm F1.2 (H )160° view angle
video output AHD: 2560（H）×1944（V）
waterproof level IP68
rotate Horizontal: 360° rotation Vertical:270°
size and weight Ø40mm, Length :146mm 672g
Camera housing material 304 Stainless stee
Carbon Fiber Telescopic Pole
Material Carbon Fiber
Unfold length 5.15 meter
Fold length 1.38 meter
10.1“4K Touch Screen Recording Monitor
Screen Size 10.1″
Display Resolution 1280*800 px Compatible with1920*1200 px
TP Structure In-cell
Sensing Method Self-Capacitance
Recording Resolution 4096*3112 ,2K、1080P、720P、CVBS
Photo 20MP ,16MP、12MP、8MP、5MP、2MP
Video Output HDMI：4K (4096*2160
storage card TF card 2GB-256GB
language Multiple Languages
Voltage DC :12V USB DC:5V
power supply DC 12V 2A
lithium battery 6200mAh(8.4V)x2
Stand-alone working time 10-12 hours
full working hours 6-8 hours
waterproof level IP63
size L*W*H 30*19*1.8CM
weight 865g
