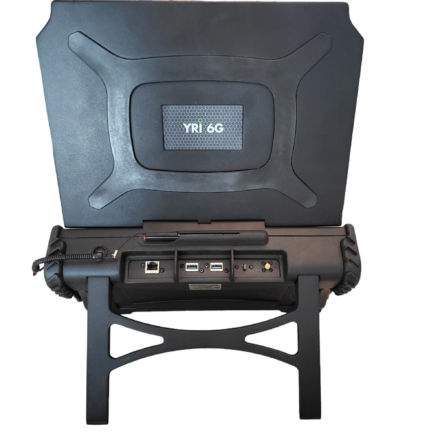

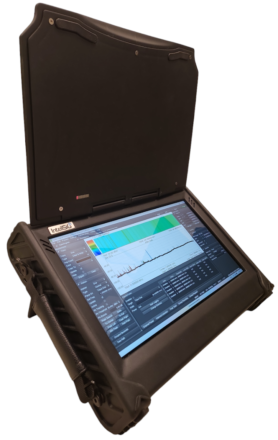

YRI – 6G spectrum analyzer is designed to detect illicit eavesdropping signals, used while performing site surveys to detect communication systems, detect radio frequency transmissions, analyze and investigate misuse of the RF spectrum. It sweeps from 9kHz to 6GHz in real time.
Its sweep speed is 24GHz/sec, 27 MHz streaming bandwidth,
-158 dBm displayed noise average.
The system includes the professional TSCM software Kestrel Pro, an Omni / directional antenna and an IR detector.
High-performance spectrum analyzer and monitoring receiver. Tuning from 9kHz to 6GHz, the analyzer has 160 MHz of instantaneous bandwidth (IBW), 110 dB of dynamic range, 1 THz/sec sweep speed at 30 kHz RBW (using Nuttall windowing), and phase noise performance that is low enough to contribute less than 0.1% error to EVM measurements and rival.
TSCM Professional Software Features:
RF Spectral Display (RSD): used to observe the ambient RF spectrum environment in the frequency domain and observe discrete signal characteristics.
Multiple Spectrum Windows: actively display, search and analyze any number of independent spectral windows as standard Windows TABS.
Waterfall Display (WFD): immediately observe and review any new signal events, as they occur in the time domain, without interrupting the collection process.
Graticule Control Group: easily setup, navigate, view, and analyze, multiple instances of independent spectrum and waterfall data.
Live View Analysis (LVA): real time signal event analysis and review without the need to stop or interrupt the collection process.
Trace Math Analysis (TMA): select and display a standard differential trace math comparative for any two (2) locations
Demodulation and Visualization: quickly demodulate and record audio samples of AM, FM, USB and LSB signals.
Fat-Fourier Transforms (FFT): display various real0time FFT windows within the demodulation control group.
