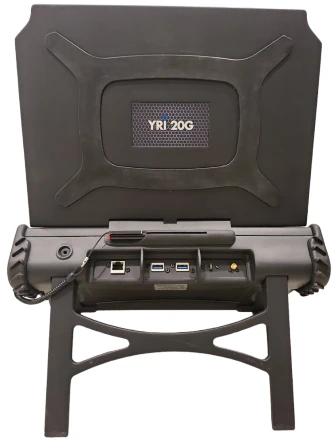

Spectrum Analyzer Features:

High-performance real time spectrum analyzer and monitoring receiver. Tuning from 100 kHz to 20GHz, the analyzer has 160 MHz of instantaneous bandwidth (IBW), 110 dB of dynamic range, 1 THz/sec sweep speed at 30 kHz RBW (using Nuttall windowing), and phase noise performance that is low enough to contribute less than 0.1% error to EVM measurements and rival.

TSCM Professional Software Features:

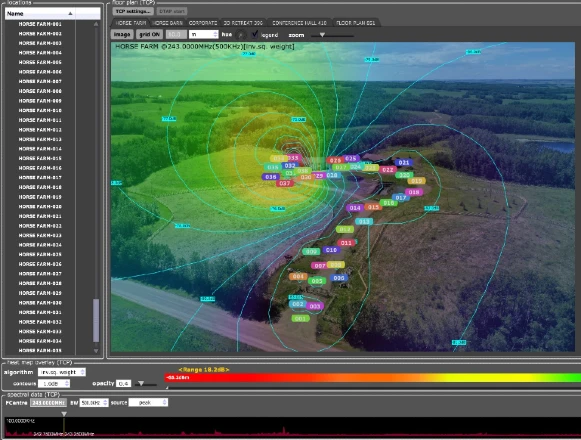

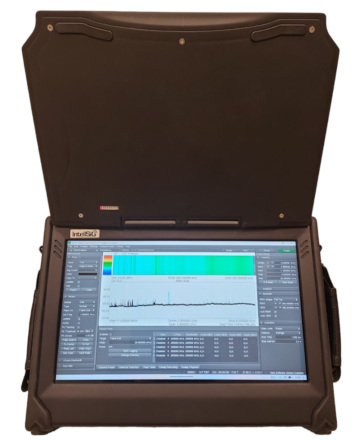

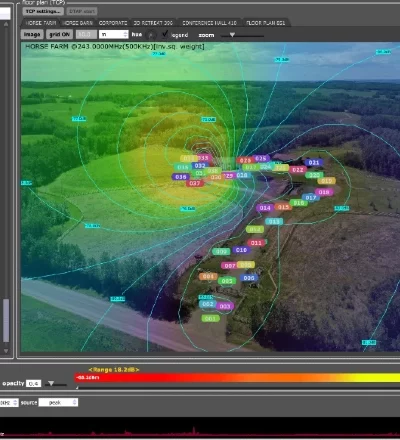

RF Spectral Display (RSD): used to observe the ambient RF spectrum environment in the frequency domain and observe discrete signal characteristics.

Multiple Spectrum Windows: actively display, search, and analyze any number of independent spectral windows as standard Windows TABS.

Waterfall Display (WFD): immediately observe and review any new signal events, as they occur in the time domain, without interrupting the collection process.

Graticule Control Group: easily setup, navigate, view, and analyze, multiple instances of independent spectrum and waterfall data.

Live View Analysis (LVA): real time signal event analysis and review without the need to stop or interrupt the collection process.

Trace Math Analysis (TMA): select and display a standard differential trace math comparative for any two (2) locations.

Demodulation and Visualization: quickly demodulate and record audio samples of AM, FM, USB and LSB signals.

Fat-Fourier Transforms (FFT): display various real0time FFT windows within the demodulation control group.
