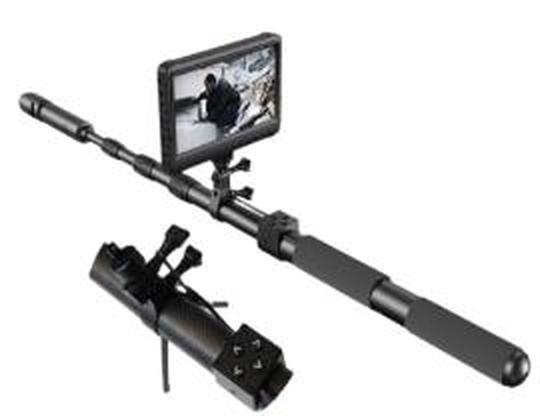

LC 500 pole camera is a professional 2MP Sony camera, with 360° PTZ inspection camera. its viewing angle is 135° and it is equipped with a light source of 8 LED’s or an IR lamp.
It enables audio communication through the tip of the pole. It includes a telescopic pole camera of 5.0m (unfolded), 1.38m (folded).
The system has a 7-inch screen with recording option and a working time of 4 hours between charges.
Technical Specifications
Camera Rotates Horizontally: 360°, Vertically: 360°
Motor Speed 10r/m
Image Sensor 1080P SONY
Light Source 8 Pcs LED
Sensitivity 0.0001 Lux/F1.2
Lens & View Angle 3.6mm F1.2 (H) 160°
Focal length 20-100cm/7.8Inch-39.4Inch
Camera size 34.5×51.5mm
Rod Length & Weight About 5.15m, fold 1.38, 1.4kg
Size of screen 7Inch LCD Screen
Resolution 1024×600 Pixel
Brightness 500 cd/m2
Video input 1080P HD-TVI
Response <0.1s
Power output 12V 300MA
Video LED control High-light, low-off
Effective Pixels 1920×1080 PX
Video Compression H.264
Video Storage AVI
Operation System Windows & Mac OS
Port USB 2.0/Audio in
Language Multiple
Voltage DC: 7-24v USB dc: 5v
AC Adapter DC5-12V-2A
Built-in Battery Li-battery 7500mAh
External SD card TF card Max128GB (optional)
Sunshade Removable One-press open sunshade
